    [Question] Basic Light Switch Question

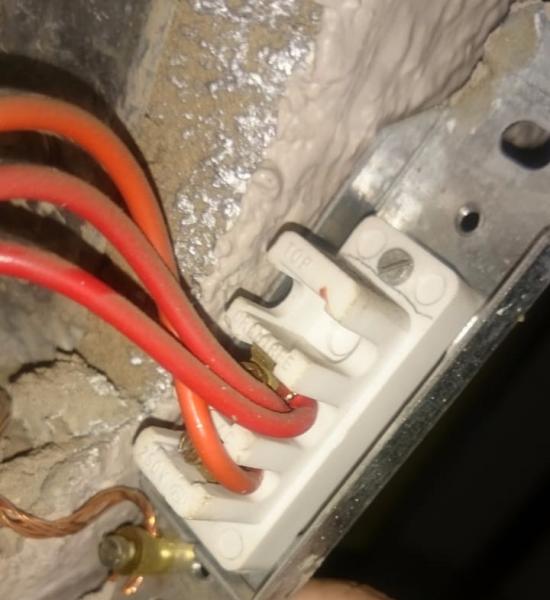

    Good day gentlemen, not sure if I'm in the right forum but can you tell me what I'm looking at here? Is the orange wire going up to the light? Then two Live (phase), with the second probably going to another switch?

    Click image for larger version

Name:	wtf.jpg
Views:	1
Size:	38.2 KB
ID:	269727

    Pardon my stupidity.
  • GCE
    Platinum Member

    • Jun 2017
    • 1473

    #2
    Hi

    Orange is the switch wire going to the light fitting - the 2 red wires are looped out between switches and are permanently live

    Comment

    • witblitz
      New Member
      • Nov 2018
      • 2

      #3
      Originally posted by GCE
      Hi

      Orange is the switch wire going to the light fitting - the 2 red wires are looped out between switches and are permanently live
      Thank you very much.
